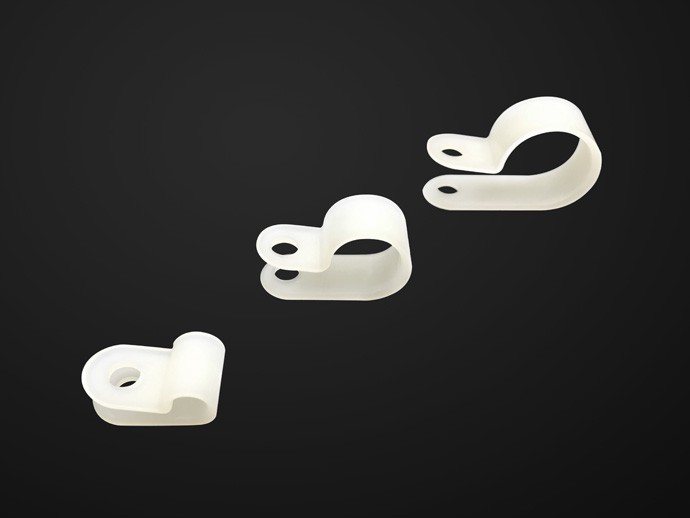

R-Clamp

Technical information
Material UL Approved Polyamide 6.6
Temperature range -20℃ to +85℃(-4°F to 185°F)
Color Natural, black
Flammability rating UL 94V-2
Characteristics
• Screw mount cable clamps are designed to hold cables, tubes, and components in domestic appliance, electronics and electric apparatus generally.
•  Good temperature resistance as well as offering high strength. A feature of the cable clamps are their versatility to accept cables of differing sizes through the use of a range of fixing holes – this feature enables uses to minimize stock holding of a large range of clamps.
• Light weight makes them particularity suitable for use in areas such as aircraft and aerospace where minimizing weight , but retaining a strong fixing, is vitally important.



R-Clamp Henan Quanxiang Industrial Co., Ltd.
Product
code		 Mounting Hole Centers(A) Width
(W)		 Thickness
(T)		 Max BundleΦ  Mounting HoleΦ  Pack  quantity
[mm] [in] [mm] [in] [mm] [in] [mm] [in] mm(inch) [pcs]
GCL-1/8S 8.2 0.32 9.1 0.36 1.3 0.05 3.3 0.13 5.5(0.21) 100/1000
GCL-3/16S 9.6 0.38 9.1 0.36 1.3 0.05 4.8 0.19 5.5(0.21) 100/1000
GCL-1/4S 10.3 0.41 9.1 0.36 1.3 0.05 6.6 0.26 5.5(0.21) 100/1000
GCL-5/16S 10.6 0.42 9.1 0.36 1.3 0.05 7.8 0.31 5.5(0.21) 100/1000
GCL-3/8S 11.9 0.47 9.2 0.37 1.3 0.05 9.7 0.38 5.5(0.21) 100/1000
GCL-1/8 9.1 0.36 12.7 0.50 1.5 0.06 2.9 0.11 5.3(0.21) 100/1000
GCL-1/4 11.4 0.45 12.7 0.50 1.5 0.06 5.9 0.23 5.3(0.21) 100/1000
GCL-3/8 13.4 0.53 12.1 0.48 1.5 0.06 9.1 0.36 5.3(0.21) 100/1000
GCL-1/2 15.0  0.59 12.7 0.50 1.5 0.06 12.2 0.48 5.3(0.21) 100/1000
GCL-9/16 15.8 0.62 12.7 0.50 1.5 0.06 13.8 0.54 5.3(0.21) 100/1000
GCL-3/4 19.8 0.78 12.7 0.50 1.5 0.06 18.6 0.73 5.3(0.21) 100/1000
GCL-7/8 21.4 0.84 12.7 0.50 1.5 0.06 21.8 0.86 5.3(0.21) 100/1000

GCL-1

 22 0.866 12.7 0.50 1.5 0.059 27.5 1.082 5.45(0.21) 100/1000
GCL-1 1/4 27 1.062 13 0.511 5.5 0.216 33 1.299 5.45(0.21) 100/1000
