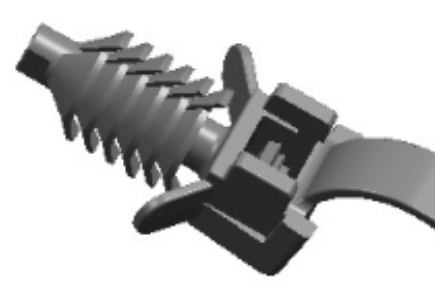

One Piece Fixing Ties with Fir Tree and Disc, Suitable for the Round Holes

• Fir tree for round holes, Disc adjusts tie for pressure from various directions and minimizes access of dust and dirt

• Cable tie head always situated in defined position

• Easy to assemble without the need for a tool

One Piece Fixing Ties with Fir Tree and Disc, Suitable for the Round Holes

Item No.	Sketch Map	W                             (mm)	L                         (mm)	Hole                         (Φmm)	Max.Panel Thickness   (mm)	Disc                                  (Φmm)	Max.Bundle                          (mm)	Min.loop Tensile Strength       (N)	Pack Quantity  (pcs/bag)
QX9114101		5.4	180	6.5-7	4.5	16	40	267	100
QX157-00128		4.7	160	6.3-7	4.2	16	35	225	100
QX9101501		5.8	175	6.5-7	3.5	18	35	267	100
QX9113601		4.8	180	6.8-7.2	4	16	40	225	100
QX157-00279		4.6	163	8.0-8.5	6	16	35	225	100
QX157-00216		5	234	6.5	6	16.5	50	225	100
QX157-00215		5	223	7.6-8.4	8.75	16	50	225	100
QX9103002		5	158	6.4-6.8	2	18	35	225	100
QX157-00355		4.6	168	6.1-6.6	8.25	16	35	225	100
QX157-00185		4.7	165	6.8-7.2	6	16.5	30	225	100
QX150-55610		2.5	110	4.9-5.1	4	13	20	80	100
QX157-00127		4.6	165	6.3-7	7	16	35	225	100
QX9110901		5	150	5.8-6.2	4	/	30	225	100
QX157-00202		4.7	161	6.3-7	3	16	35	150	100
QX157-00331		4.7	215	6.1-7	6.65	15	50	225	100
