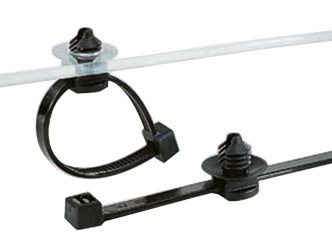

One Piece Fixing Ties with Fir Tree and Disc, Suitable for the Oval Holes

Technical information
Materials UL approved Nylon 66, Flame Resistance 94v-2
Color Black
Operating temperature -40℃ ~ 85℃ (-40℉ ~ 185℉)

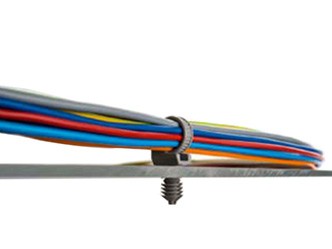

Fixation Method Fir tree for round holes, fixed process can prevent the intrusion of water and dust, fir tree foot part can be used for a variety of panel thicknesses.
Product description

• Cable tie head always situated in defined position

• Easy to assemble without the need for a tool

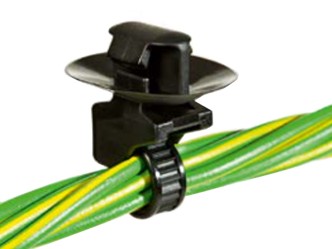

• Disc adjusts tie for pressure from various directions and minimises access of dust and dirt

• Fir tree foot part can be used for a variety of panel thicknesses

• Suitable for use within threaded holes



One Piece Fixing Ties with Fir Tree and Disc, Suitable for the Oval HolesHenan Quanxiang Industrial Co., Ltd.
Item No. Sketch Map

             W

                     (mm)

             L

                (mm)

          Hole

                 (Φmm)

 Max.Panel Thickness   (mm)

                   Disc

(Φmm)

Max.Bundle

                    (mm)

  Min.loop Tensile Strength                 (N)         Pack Quantity  (pcs/bag)
QX157-00218 5.1 231 6.2*12.2 6.7 17.6*23.6 50 225 100
6.5*12.5
6.5*13.0
7.0*12.0
QX157-00219 5.1 244 6.2*12.2 6.7 17.6*23.6 50 222 100
6.5*12.5
6.5*13.0
7.0*12.0
QX157-00253 5.1 168 6.2*12.2 6.75 17.6*23.6 35 225 100
6.5*12.5
6.5*13.0
7.0*12.0
QX157-01105 4.6 164 7.0*12 6 16*21 35 225 100
QX157-00181 4.6 164 6.2*12.2 6 16*21 35 225 100
